Kappa

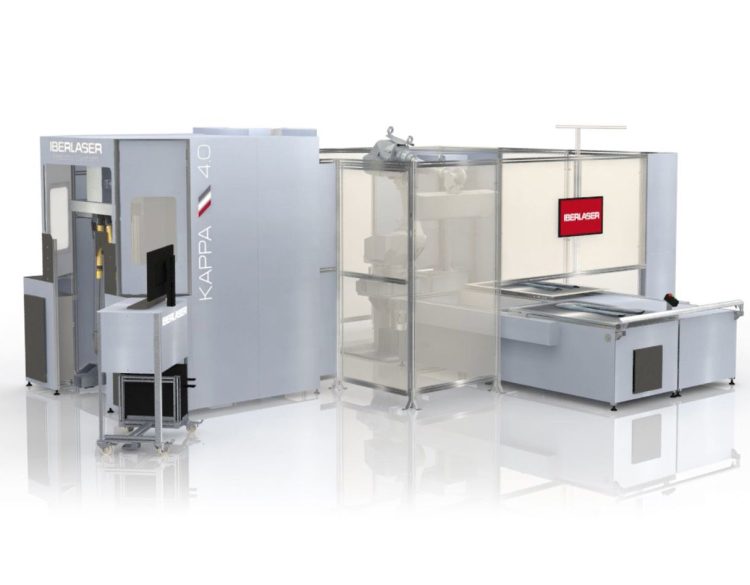

We put robotics at the service of your laundry with the most innovative machine in the jeans manufacturing. The Kappa model has the most advanced technology on the market for the creation of washing effects. This machine offers us maximum versatility and adaptation due to the possibility of working in two different ways with the same laser tube. It allows working on mobile table and mannequin simultaneously.

With capacity for very high productions, it is designed to cover all the needs of any type of garment. In hits mannequin with automatic inflation jeans can be engraved with high detail, while in their mobile tables we can record shirts, jackets, shorts or pants.

The innovation of this Kappa model is that it is the first machine in which the laser tube moves. It has a double table of 1300 mm wide divided by half, each table is programmable with independent functions and an integrated detector of sizes. These tables are bidirectional; the garment is positioned, it advances to the area of ​​the laser where it is engraved and backs up to the point of origin. When the garment goes back the operator turns it over and makes it advance to the l​aser area. So the front and back are done in the same operation. It also has a mannequin area where you can create the most complex designs.

The laser field of action is 600mm wide and can work along as much as you want. The operator puts the garment on the table with a camera and screen system that facilitates its placement eliminating the possibility of having defects in production.

DOWNLOAD PDF
